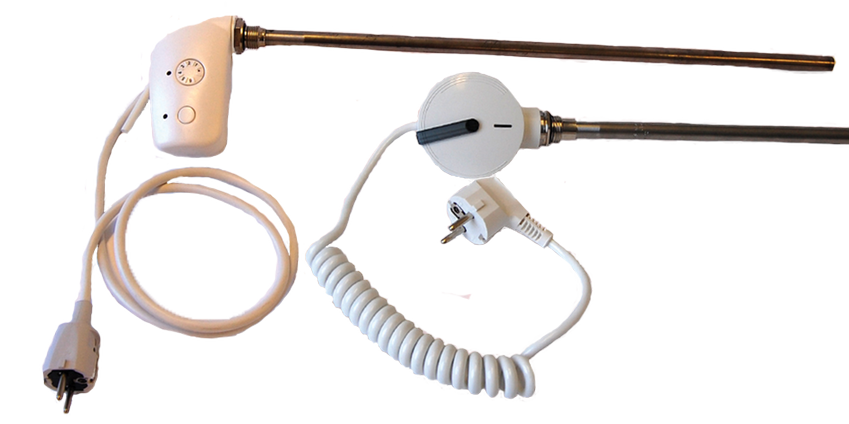

Tubular heating elements with integrated regulation for immersion heating, class I
Tubular heating elements with insulation class I are used in product applications where ground connection is available. They are normally produced with one-end connection and options according to customer specification. If desired you also recieve guiding to the optimal heating solution for your product application.
Technical data
Material | AISI 321 (6,4, 14 mm) AISI 304 (16 mm) Stål DIN 2394 |
Dimension | 250-2100 mm |
Voltage | Max 480V (With options below max 230 V) |
Power | 300-2000 W |
Diameter | 6,4, 14, 16 mm |
Connection | Cable, tab terminal or round pin 1.5 or. 1.6 mm |
Options | Electronic controlbox with quick connection |
Benefits
- Integrated temperature regulation
- Integrated thermal protector
- Quick connection
Examples of applications
- Towel dryers
- Liquid filled radiators
- Other liquid heating
- Heating systems for trolley busses
