Defrosting elements prevent ice formation

– Ideal for freezer units, air-conditioning plants and outdoor installations

Defrosting elements

Defrosting elements

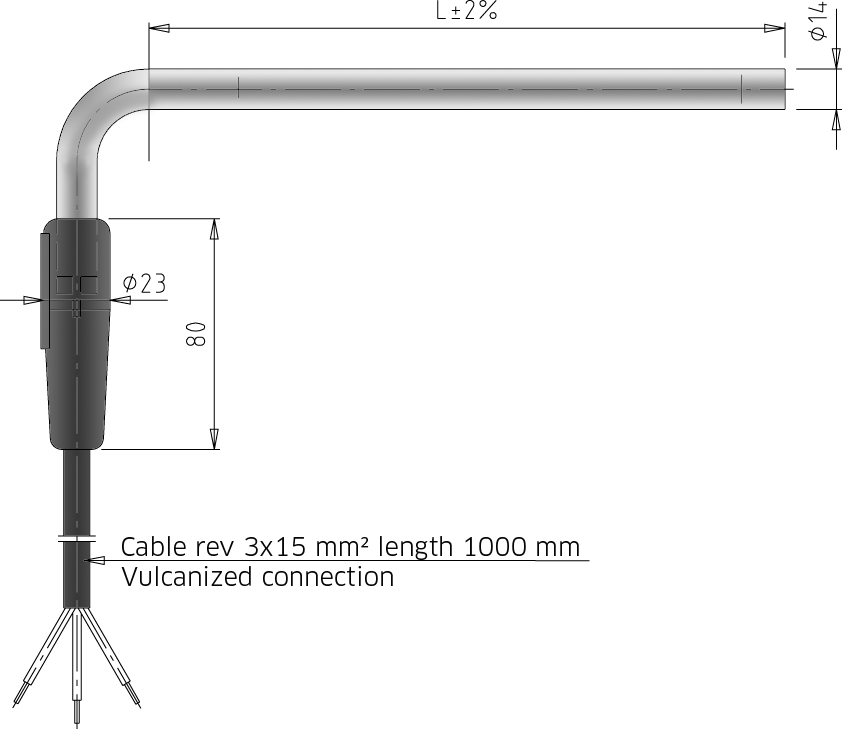

Backer tubular heating elements are often used in defrosting.

Tubular heating elements are used to prevent ice formation and to thaw ice in cooling and freezer units, air-conditioning plants, compressors and outdoor installations.

Technical data

Material

Stainless steel:
AISI 304/EN 1.4301
AISI 316L/EN 1.4404

Dimension

Ø 6.4, 8.5, 14 mm

Assembly

Fixing in the object

Connections

Vulcanized terminal – Oil resistant cable
Terminal box – M4, flat pin, round pin
Epoxy resin sleeve – wire connection
Plastic – wire connection

Design

One or two wattage ratings/element
Connection at one or two ends
According to customer specifications

Others

Sealing: Vulcanized terminal, terminal box

Examples of applications

  • Freezer and cooling equipment
  • Compressors
  • Professional kitchens
  • HVAC
  • Outdoor use

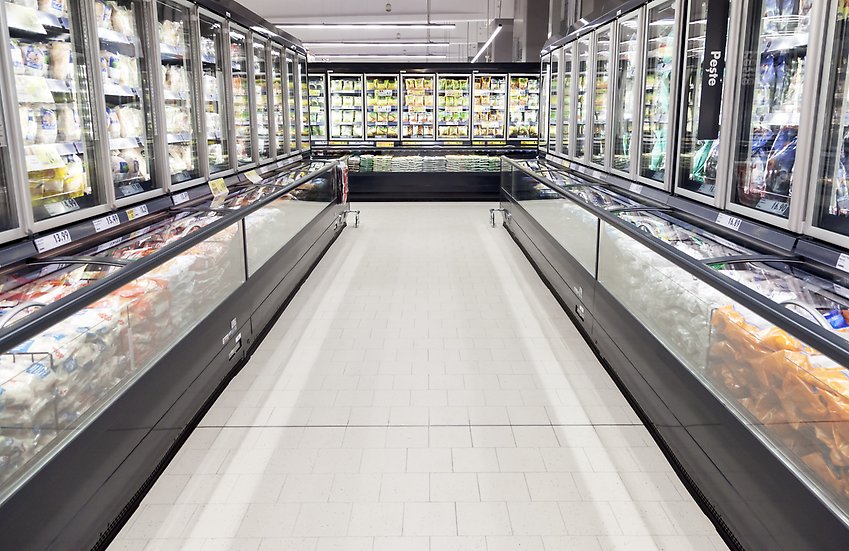

Food cabinet chiller

Product examples
