Thermostat and manually resettable thermal cut-offs

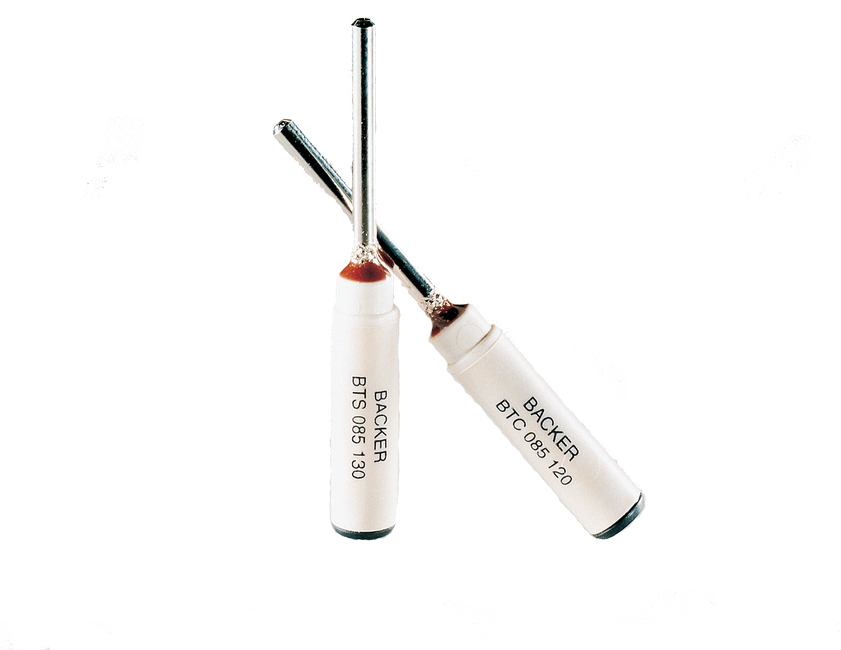

The tubular heating elements with dia. 8.5 mm can be equipped with a thermostat and a resettable thermal cut-off, mounted at the end of electrical tubular heating element. Heating elements with mounted thermal cut-off and/or thermostat are approved by SEMKO, VDE and UL, particularly suitable for liquid heating.
To determine the breaking temperature of the resettable cut-off it is advisable to measure the temperature under normal conditions and in intended application. The breaking temperature is recommended to be at least 25-30°C above the maximum temperature of the thermal cut-off at normal operation.
Technical data
Thermostat | Thermal cut-off | |
Type of design | BTS 085 060 (10) 130 | BTC 085 060 (10) 130 |
Cutting temperature | 60 (10) - 130°C | 60 (10) - 130°C |
Tolerance | +/- 5°K | +/- 10°K |
Operation | +/- 1°K | +/- 1°K |
Max power | 250 V | 250 V |
Max current | 10 A | 12 A |
Contact resistance | < 20m Ω | < 20m Ω |
Surrounding temperature | T 180°C | T 180°C |
Certificate | Semko Certifikat No. 945010701 | Semko Certifikat No. 982103601 |
Safety | EN 60730-2-9:1995 | EN 60730-2-9:1995 |
Connection | Standard tab terminals or cables spot welded to the termianl pin |
Benefits
- Compact design
- No extra cable connection is required
- Premounted inside the element
- Reliable function, power is cut close to the heating source
- Low total cost for the function
Examples of applications
- Dish washers
- Washing machines
- Photographic processors
- Boilers
- Coffee machines
- Air heating with forced air flow
