WE MAKE THINGS WORK
Backer has the largest technology portfolio in the industry. Continued investments in new technologies are part of our success. Process and product development are supported by our significant investments in testing resources and labs. Our business grows through partnerships with our customers that utilize our resources in developing unique and competitive solutions.
TUBULAR HEATING ELEMENTS
Traditional elements in diameters 6.0 to 21.0 mm. Lengths from 140 to 7200 mm. Material AISI 304, 321, 316L, Incoloy 800, 825. Temperatures up to 940°C. Cartridge heaters, diameter 3.3-20.0 mm. Aluminum sections for convection and radiation. Vulcanized tubular heating elements.
Product examples

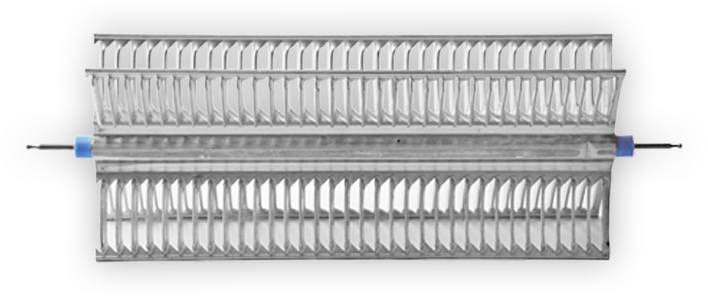

Aluminum elements

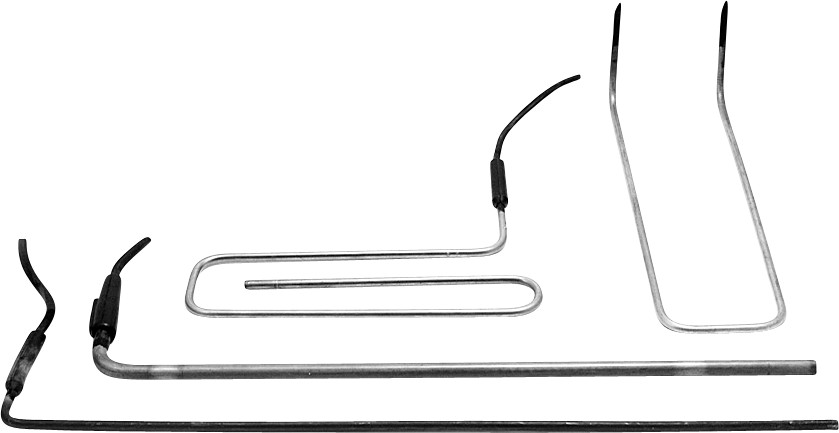

Defrosting elements

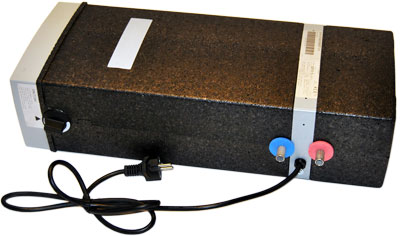

Backer water heater
Overthe-side Immersion heater
Immersion heater

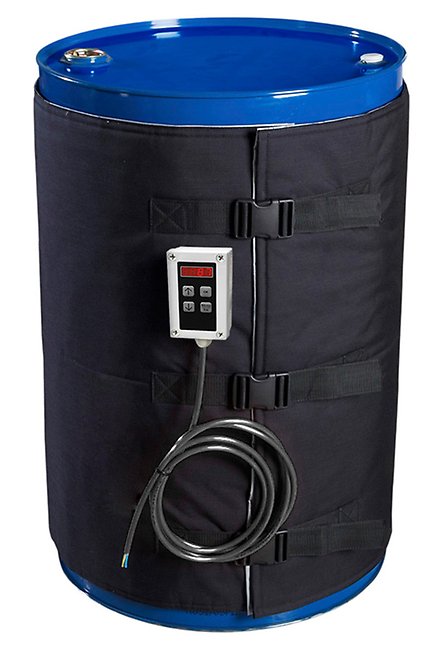

Barrel heater

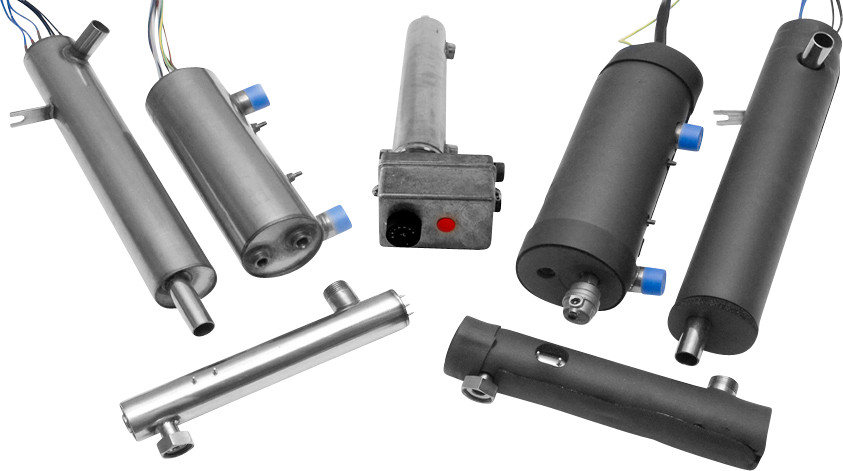

Flow heaters

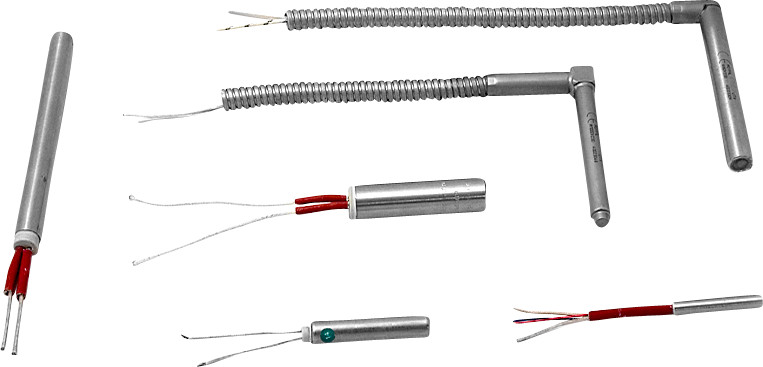

Cartridge heater

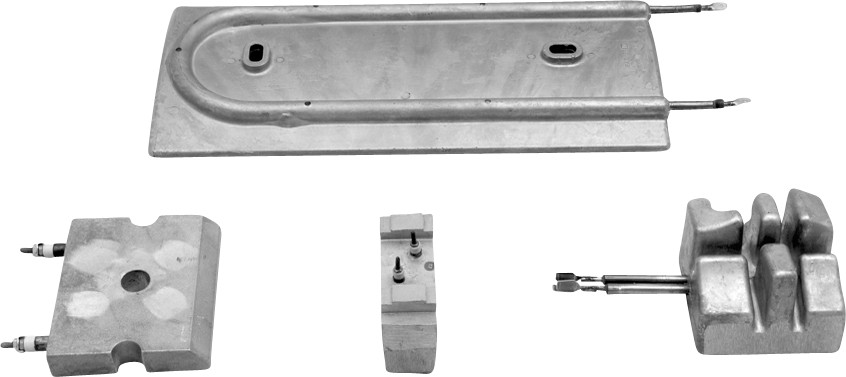

Cast-In elements
Nozzle elements

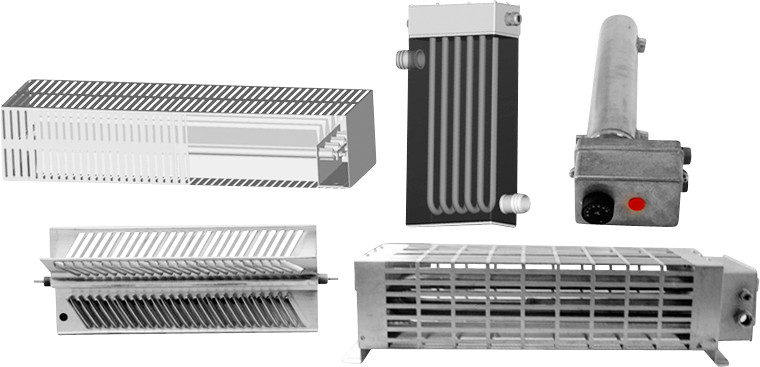

Resistors

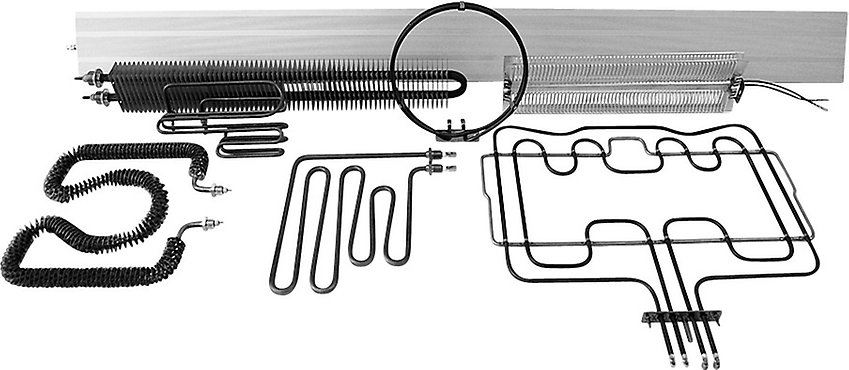

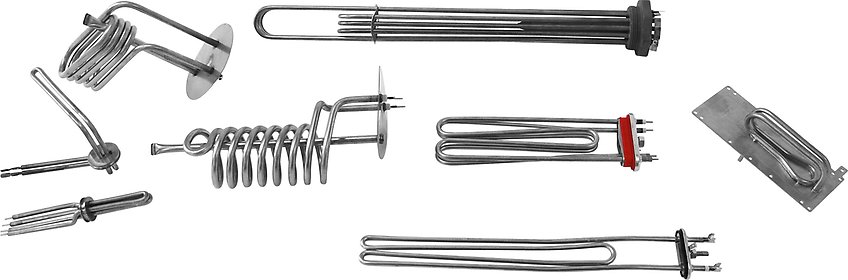

Tubular air heating elements
Tubular heating elements for liquid

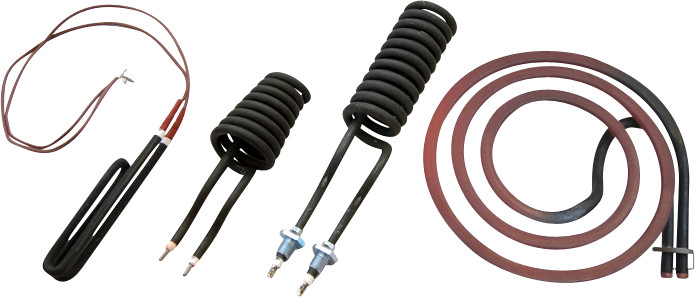

Ignition elements

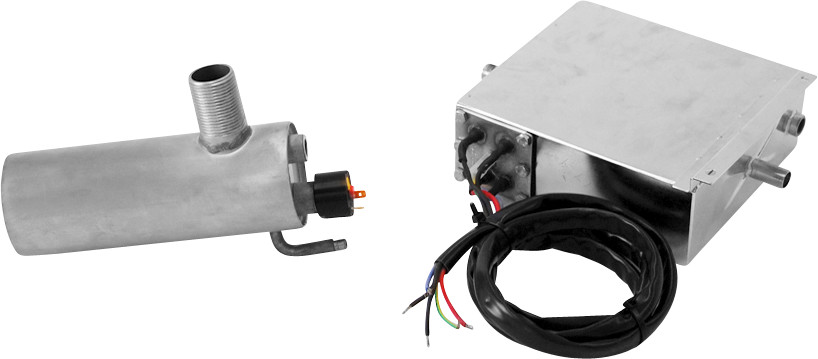

Steam generator
PRINTED ELEMENTS
Thick film elements in AISI 304, temperature max. 500°C. Foil elements in PVC, max. 70°C, polyester, max. 110°C, polyimide, max. 230°C, silicone, max. 230°C, micanite, max. 400°C. Custom connections. .
Product examples
Barrel heater

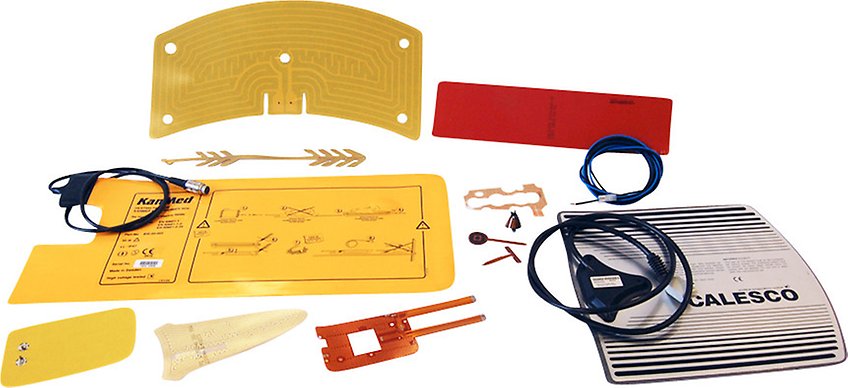

Flexible Foil heaters
Flow heaters

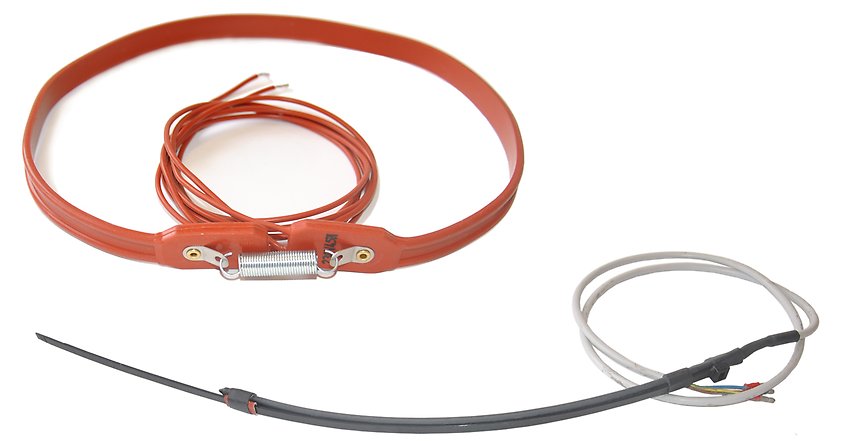

Compressor heaters

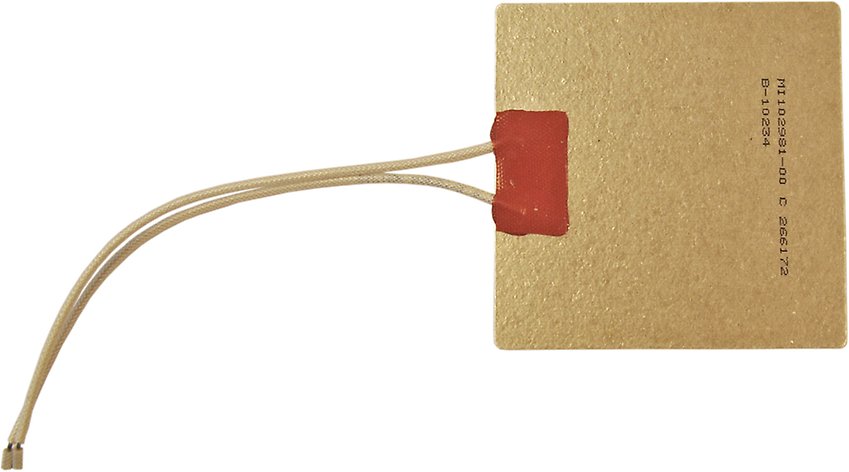

Micanite heater
Resistors

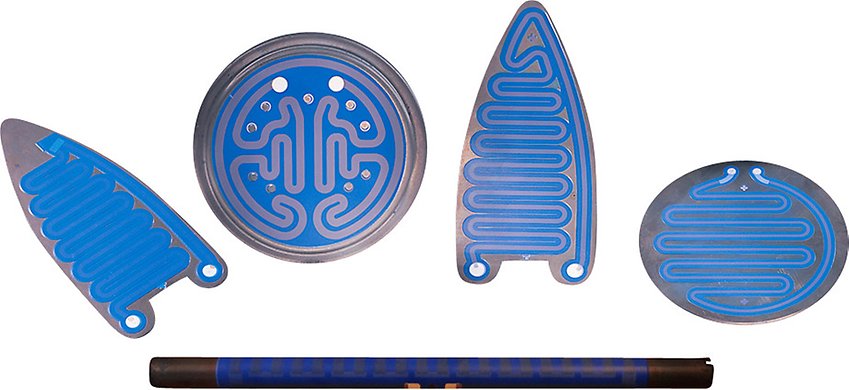

Thick film elements
Ignition elements
Steam generators

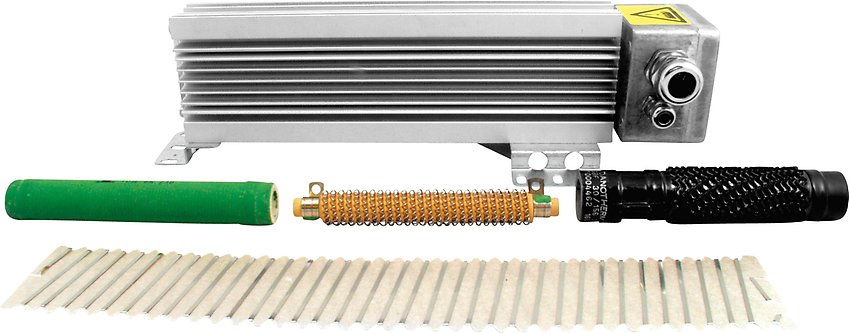

SUPPORTED WIRE ELEMENTS
Micanite elements, ceramic elements, enameled elements/ resistors. Surface power 3-4 W/cm2 at max. 350°C. Max. 7 W/cm2 with good thermal conductivity and a good fit. Operating temperature max. 700°C. Aluminium housed brake resistors.
Product examples
Supported wire elements
Micanite heater
Resistors
MEASUREMENT AND CONTROL
Thermostats, thermal cut-offs, temperature control integrated in tubular heating elements, regulators and sensors, terminal boxes.
Product examples
Immersion heater

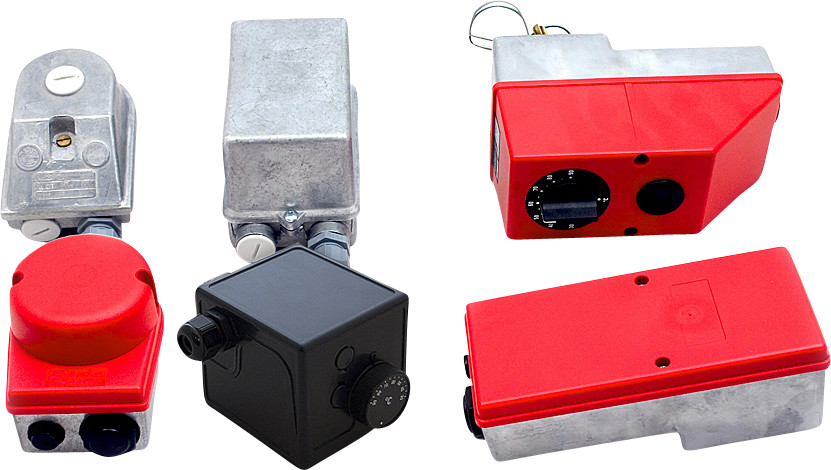

Terminal boxes

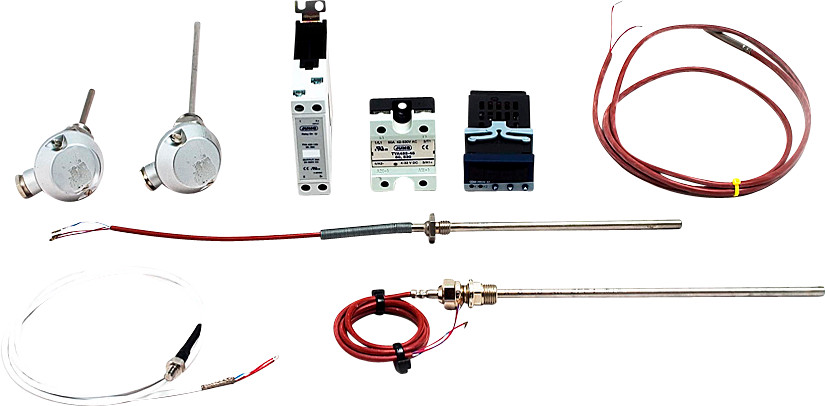

Regulators and sensors

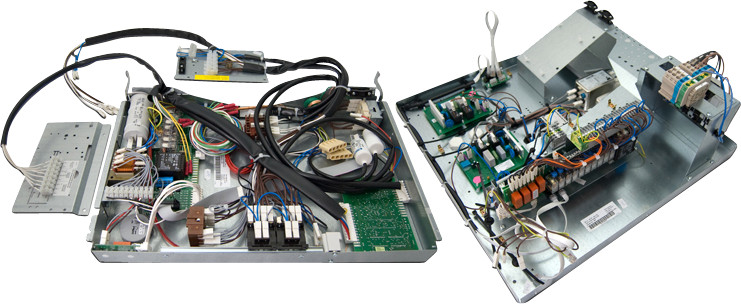

Control panels

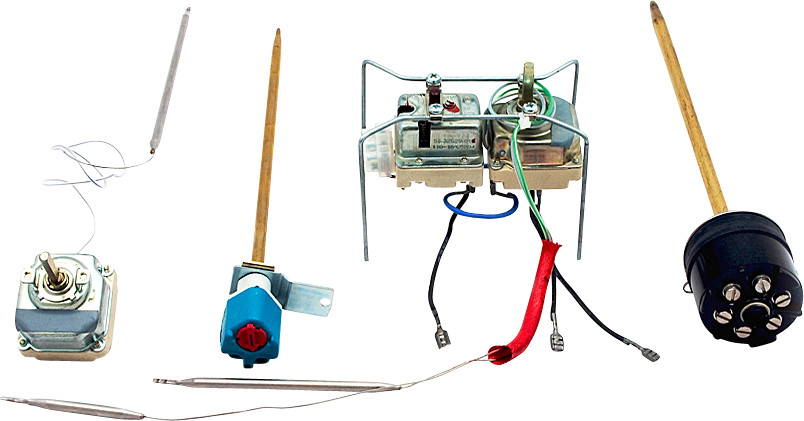

Thermostats and
Thermal cut-offs

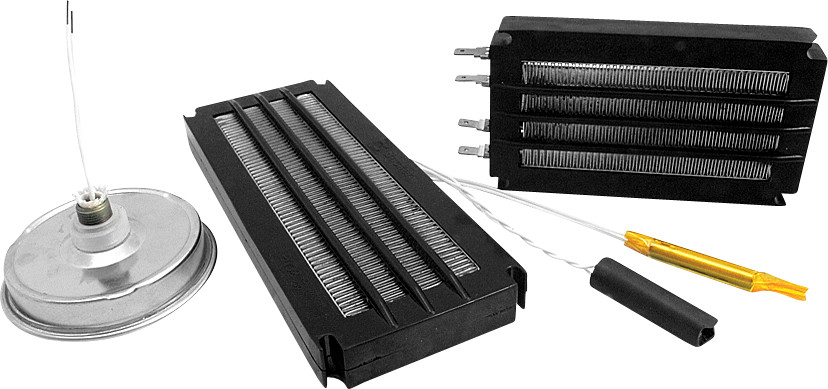

PTC ELEMENTS
Self-regulating function. Adjustment of power via air flow. Connection voltage 110-240 V and 12-36 V. Curie point 50°C-320°C.
Product examples
Defrosting elements
Barrel heater
Backer water heater
HEATING CABLES
Self-regulated with Thermoplastic or Flourpolymer up to 300°C and 120W/m. Parallell resistive constant power with Silicone or Flourpolymer up to 485°C 150W/m. High temperature with steel sheet up to 1000°C 250W/m. Long line with silicone for <20km.
Product examples

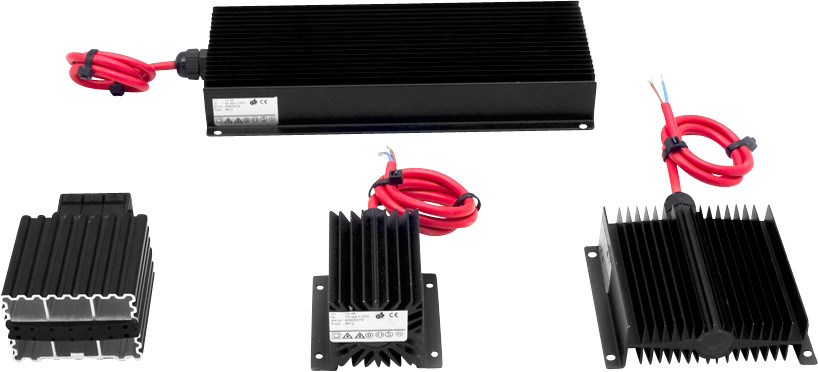

Cabinet heaters
Defrosting elements
Compressor heaters
PTC elements
SPECIAL
Components for element production, heat exchangers, heat treatment, furnace brazing, stainless pipes.
Product examples

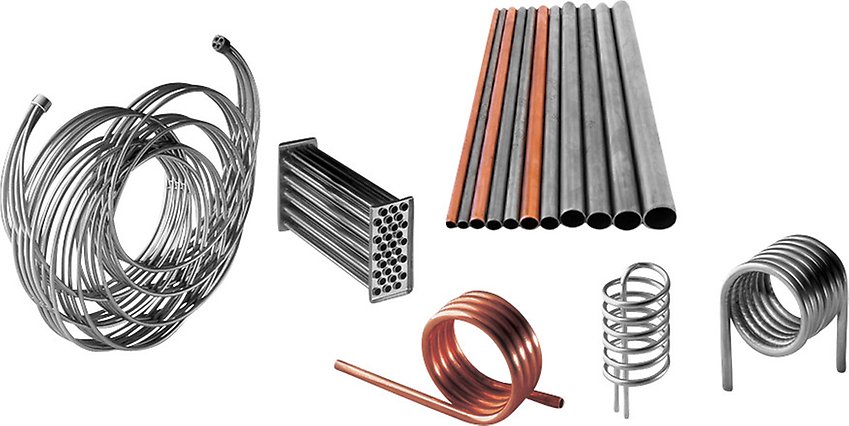

Welded tubes
Oven lamps

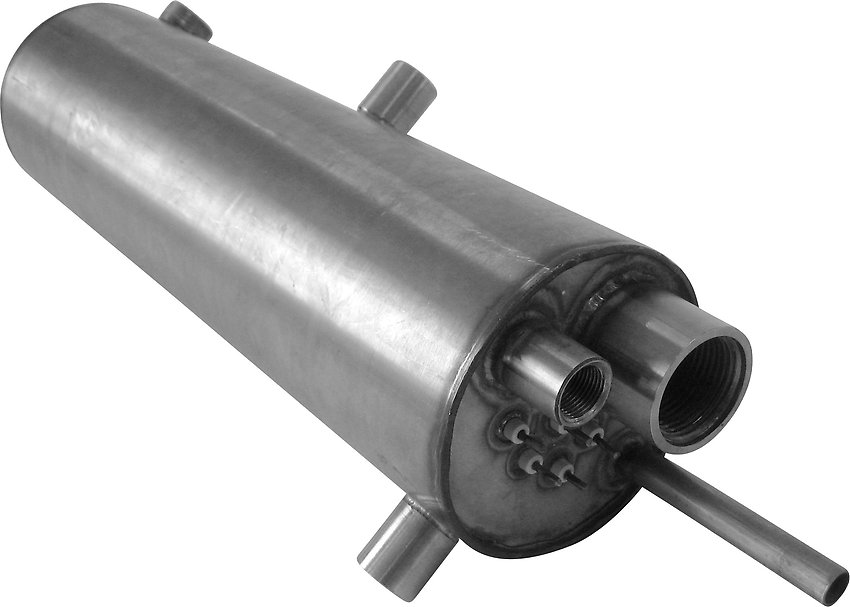

Heat exchanger

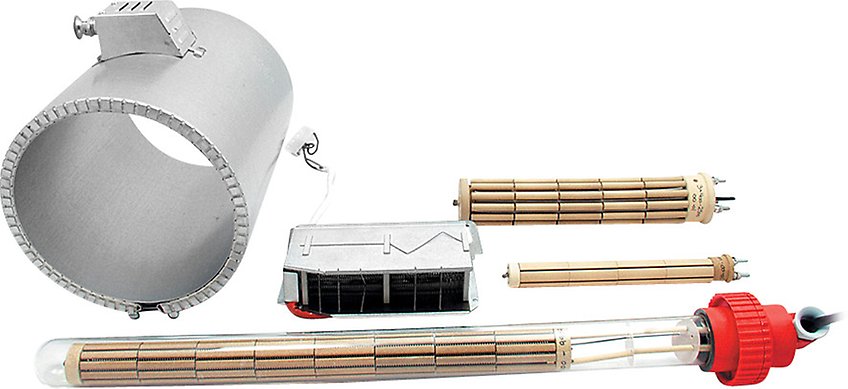

SUSPENDED WIRE ELEMENTS
Rapid heating, thermostat adjustment and overheat protection. Band heaters max 700°C with 4,5W/cm2.
Product examples

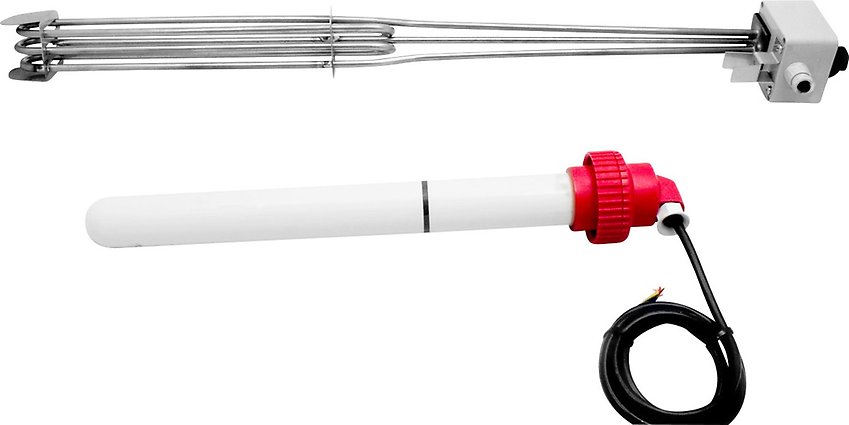

Over-the-side Immersion Heater
Compressor heaters
Resistors

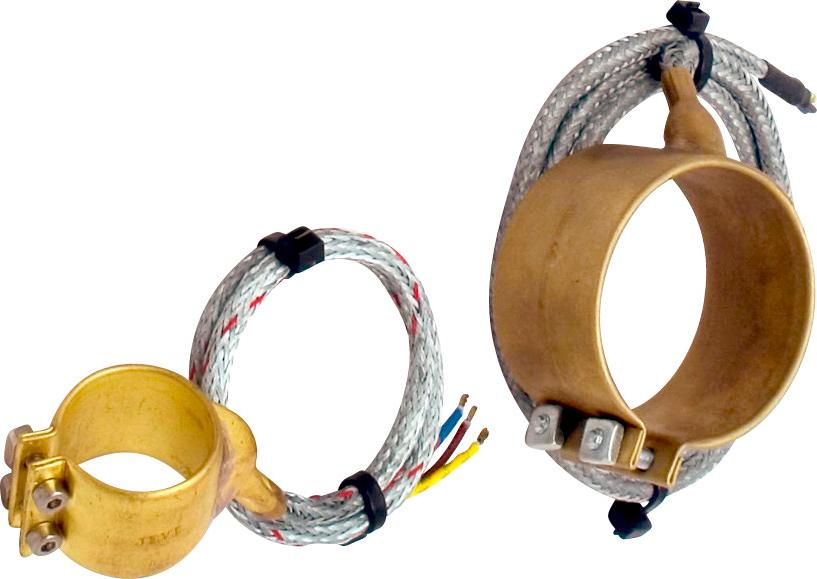

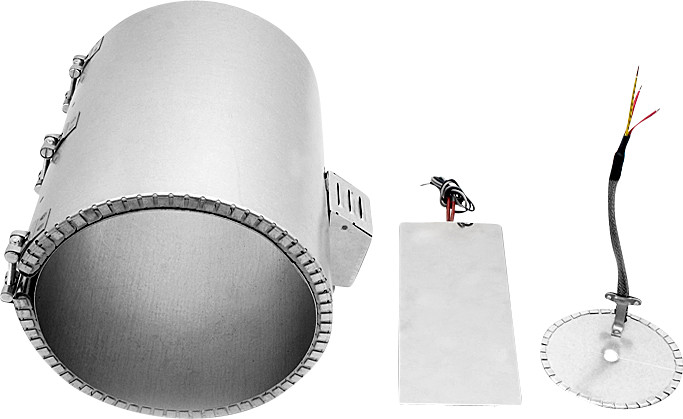

Band heaters

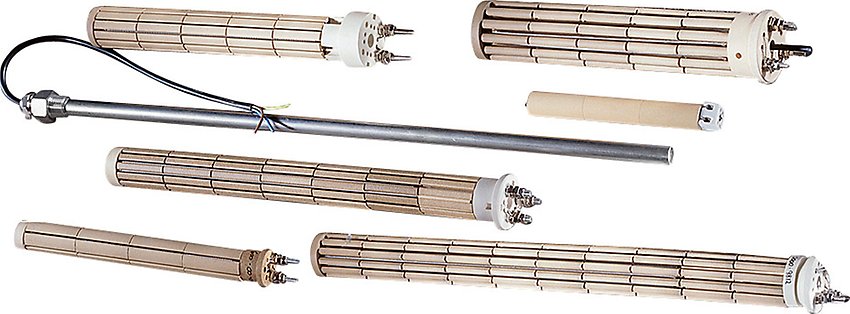

Ceramic heating elements
Suspended wire elements
Steam generator

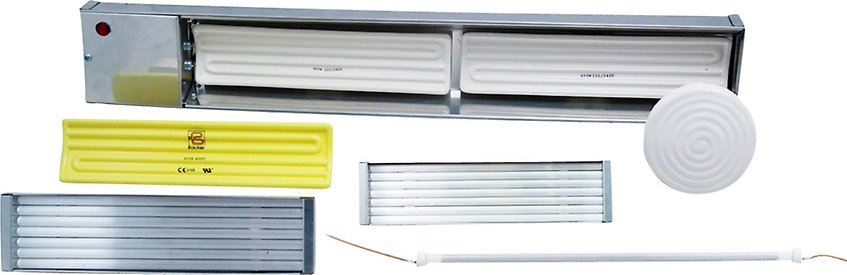

IR AND HALOGEN ELEMENTS
Material: Ceramic, quartz glass, quartz glass with halogen. Temperature 150-2400°C depending on the material.
Product examples
IR elements
HEAT PUMP TECHNOLOGY
Our most energy efficient heating technology. Air-to-air or air-to-water heating. Temperatures up to 70°C. Voltage 230-400V
Product examples
Backer Heat Pumps
TECHNOLOGIES
