Cast-in elements for direct & indirect heating

– Suitable for several different applications

Cast In Elements

Cast-in elements

Cast-in elements can be used for indirect heating of liquids for instance in tanks, for example, but also for direct heating in oil pre-heaters.

Backer tubular heating elements can be cast in an aluminum alloy such as silumin.

Embedment of a tubular heating elements increases the heat-emitting surface and enables the element to be adapted to different applications.

Technical data

Material

 Different aluminum alloys

Dimension

 approx. 500x500 mm, in certain cases even larger

Assembly

Attachment in object

Connections

M4, flat pin, spot welded cable, round pin

Designs

One or two wattage ratings/element
According to customer specifications
Standard range

Example applications

  • Motor heaters
  • Electric water heaters
  • Resistance
  • Air heating
  • Oil heating

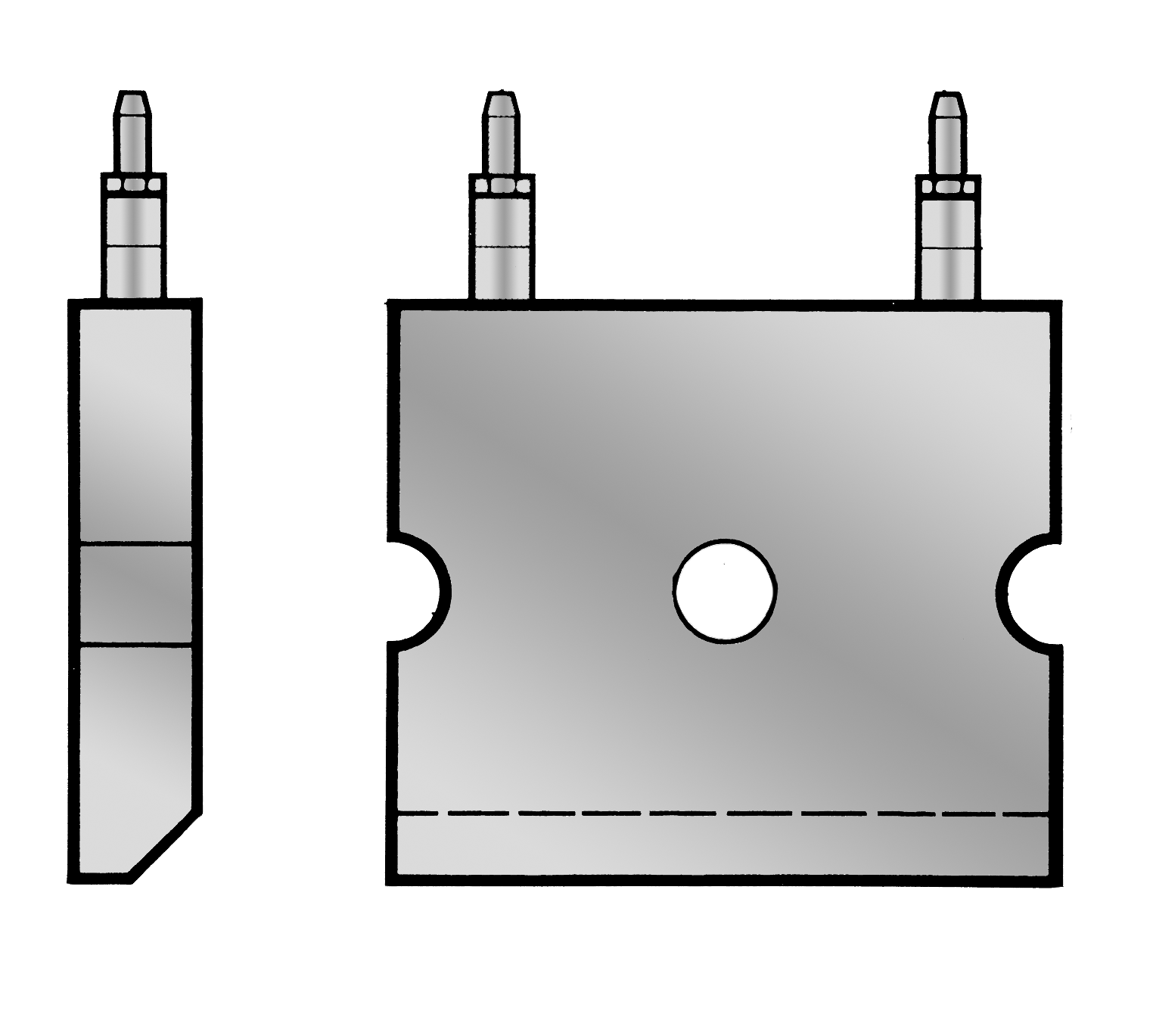

  • Heating plates

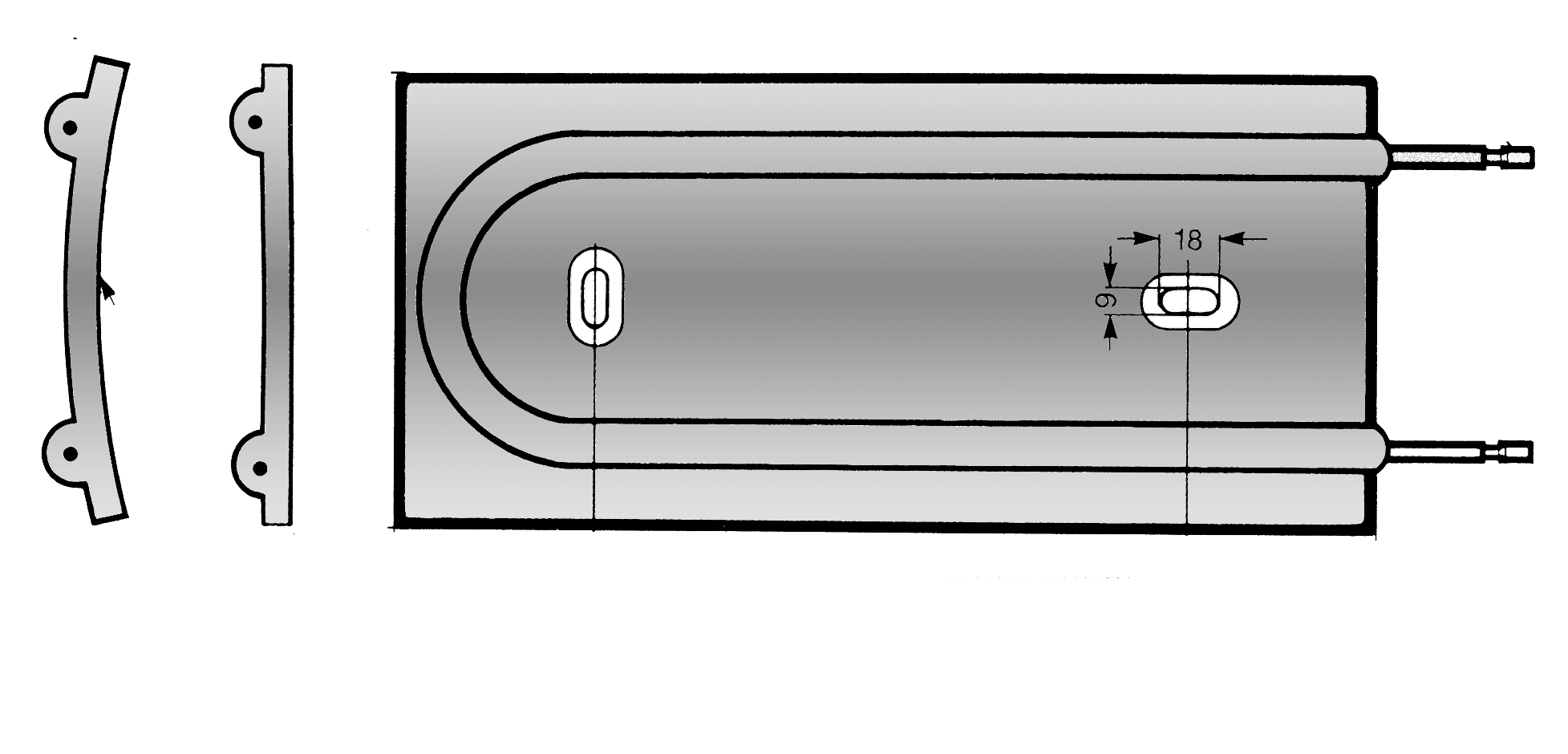

  • Heating shields
Automotive

Product examples
