– Finned elements

Finned elements

Finned elements

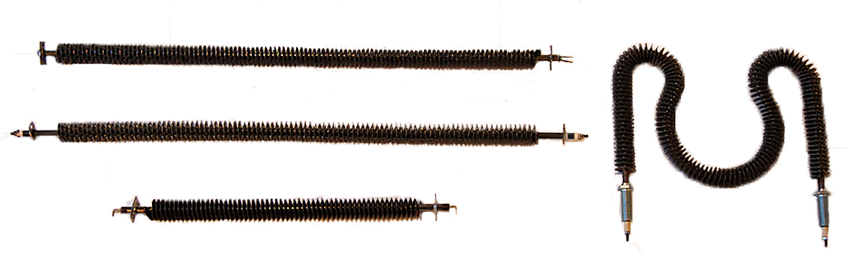

Tubular element with dia. 8.5 mm and 14 mm can be fitted with fins, stripped vertically on the element. The fins increase the radiating area and reduce the surface temperature on the element without sacrificing heat transfer. Alternatively, higher surface temperatures can be used to decrease the size of the element. The heating element can be manufactured with a connection at one end or two.

Technical data

Material

Steel – Grade D
Stainless steel:
AISI 304/EN1.4301
AISI 316L/EN 1.4404
Incoloy 800/EN 1.4876
R 323/EN 1.4828
Band material: see table below

Dimension

Tubular dia: 8.5 or 14 mm

Assembly

Nipples, fixing plate etc. per customer spec.

Connection

M4, cables, flat pin per customer spec.
One- or two side connection

Voltage

Max 600V

Safety

Meet requirements per EN 60335-1

Others

Can be soldered for higher performance



Type

Band
mat.

Ext. dia.
D (mm)

Elementdia.
d (mm)

Pitch
S (mm)

Bending

radius (mm)

280 S

SS 1160

28

8,5

6

25

280 R

AISI 304

28

8,5

6

25

340 S

SS 1160

34

14

9

30

340 R

AISI 304

34

14

9

30

Benefits

  • Reduced surface temperature
  • Increased radiation area
  • Compact design of application possible



Examples of applications

  • Radiators, convectors
  • IR radiators
  • Heating curtains
  • Sterilizers
  • Ovens

Related products
