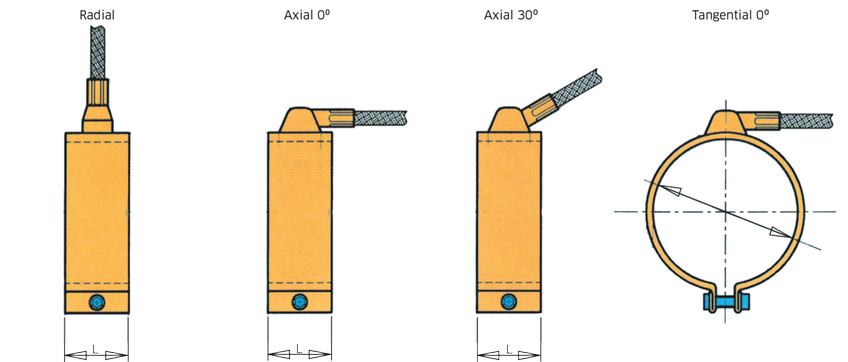

Sheath in stainless steel for extremly corrosive environments such as for injection molding of parts in PVC, which also allows higher temperatures and surface loads, 7W/cm2. Thermal sensor type J for temperature regulation. Alternative connections see above.
Assesmbly instruction
Socket head cap wrench 4 mm is used.
It is very important that the nozzle element is tightly assembled to avoid any internal voids between elements and injection molders, for example. After the first heating the nozzle element must be after-stretched. Bending of the connection cable close to the element to be avoided. Remaining plastic material at element surface can be removed by heating to melting point. Avoid impact to the element and take good care when removing plastic.
