Steam generators customized for your specific application

– Used in both domestic and commercial appliances

Steam generators

Steam generators

Steam generators are used with different areas and products, both for household and professional use.

Backer steam generators are mainly development in cooperation with our customers to be fully adapted to specific applications, but we also produce universal solutions.

Technical data

Material

Stainless steel:
AISI 304/EN 1.4301
AISI 316L/EN 1.4404

Dimension

Fitted for the application

Design

Backer provides a great number of options for thermostats, temperature – and level sensors, cable harnesses, connection boxes, etc.

Surface load

Approx 12-16 W/cm2

Voltage

230 V/400 V

Operating temperature

Approx 100-120°C

Max pressure

6 bar

Example applications

  • Steam shower
  • Steam iron
  • SPA baths
  • Steam sauna
  • Weed killing
  • Steam cleaning for industry and households
  • Inhalators
  • Sterilizers
  • Tumble driers
  • Dish washers
Steam shower

Product example

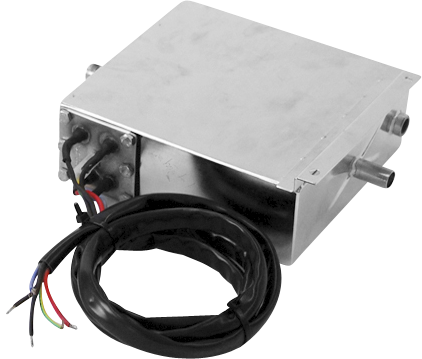

  • Steam generator Steam generator
    Steam generator with 1 running element and 2 or 3 elements for quick steam generation. This product can be used for a vaste range of appliances including inhalators, steam cleaning equipment, showers ... Read more >>
