Heat exchangers, exchanging energy between two mediums

– Seamless tubes from standard assortment for custom solutions

Heat exchanger

Heat exchangers

Heat exchangers are produced with welded and seamless tubes from our standard assortment of products according to customer specifications.

The purpose of a heat exchanger is to exchange energy between two mediums. The tubular heat exchanger from Backer can manage a higher pressure (on the secondary side) than a PHE, but the biggest advantage is the capability to include supplementary heat in the same unit and still retain its compact format. This can provide opportunities for space-saving application design.

Technical data

Material

Stainless steel per customer specifications

Dimension

Same size range as traditional PHE, e.g. Ø 130 mm, L: 350 mm

Assembly

Same size range as traditional PHE, e.g. Ø 130 mm, L: 350 mm

Connections

Cables, screws, tab terminals per customer specifications

Design

Tubular design

Others

Designed per plumbing standards

Example applications

  • Solar heating
  • Heat pumps
  • SPA baths

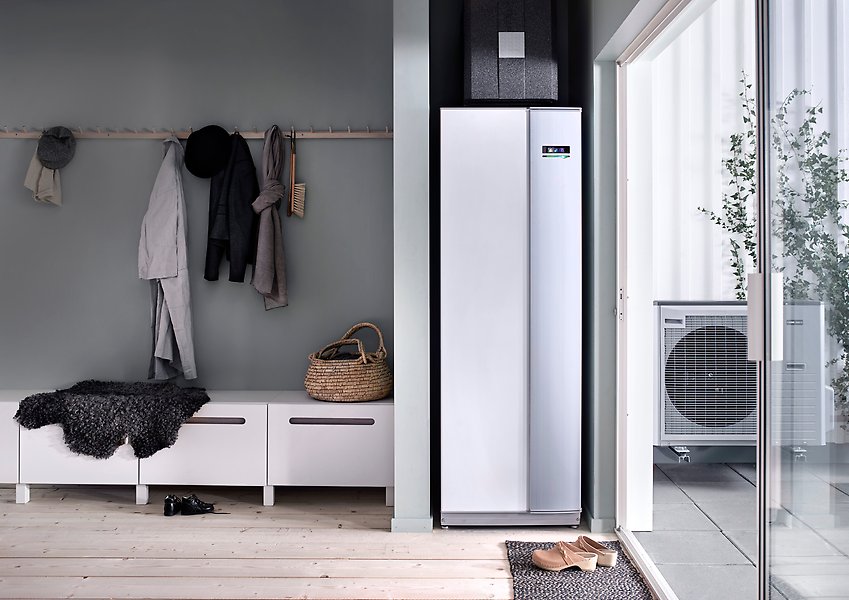

Heat exchangers for heat pumps
