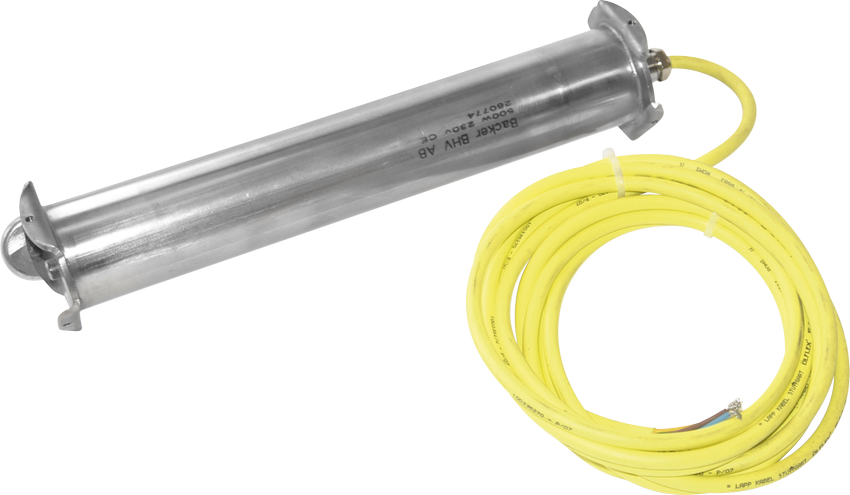

Submersible oil heater
The working temperature is regulated via an integrated thermostat/fuse.
For thermostat 70-150°C. For fuse 128°C, 152°C (the temperature of the components is validated based on the desired operating conditions).
Technical data
Material | Stainless steel EN 1.4301/SS 2333 |
Connection | Electrical connection 3x1.0 mm², 4 meter cable |
Voltage | standard: 230 V, 24 V or per customer spec. |
Hysteresis | 11°C or per customer spec. |
Weight | 1.4 - 3.1kg |
Assembly | No attachment device needed, attatched with integrated magnets at the bottom of the container. |
Surface load | 0.9W/cm² |
Safety | CE marked per LVD. 2006/95/CE |
Others | Heater complete with thermostat. Should be at least 3 cm below surface during use. Not to be used with fluids that have a flame temperature below 190°C |
Power W | Voltage V | Cutting temp. | Dimension LxWxdia. mm | Art.no. |
250 | 230 | 40°C | 225x74x67 | 6150 432 301 |
500 | 230 | 40°C | 325x74x67 | 6150 432 302 |
1000 | 230 | 40°C | 525x74x67 | 6150 432 303 |
250 | 230 | 20°C | 225x74x67 | 6150 432 304 |
500 | 230 | 20°C | 325x74x67 | 6150 432 305 |
1000 | 230 | 20°C | 525x74x67 | 6150 432 306 |
250 | 24 | 20°C | 225x74x67 | 6150 432 307 |
250 | 24 | 40°C | 225x74x67 | 6150 432 308 |
Benefits
- Integrated temperature regulation
- High voltage tolerance
