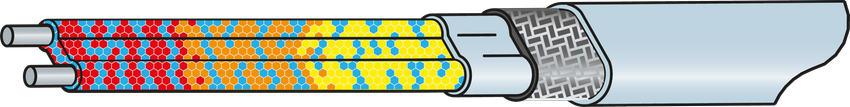

Self-regulating heating cables decrease the power if the surface temperature rises, and increase power if the surface temperature drops. The cable provide power where it is needed.
Self-regulating heating cables are used in frost protection and maintaining an even temperature. The technology has many advantages – cable length can be adjusted as appropriate and they do not overheat if positioned on top of each other. This facilitates installation on, e.g. flanges and valves.
Backer offers a broad and flexible range of self-regulating heating cables. We have cables that can handle temperatures up to 250°C and wattages up to 90W/m. They are EX-approved.
Heating cable FSM
ON/65°C - OFF/85°C
Output: 11, 17 W/m
Voltage: 230 V
Dim: 7,9x5,6 mm
Heating cable FSLe
ON/85°C - OFF/85°C
Output: 12, 17, 23, 31 W/m
Voltage: 115 el. 230 V
Dim: 10,5x5,9 mm
Heating cable FSR
ON/85°C - OFF/85°C
Output: 10,17,25,31,40 W/m
Volt: 115 el. 230 V
Dim: 13,1X6,0 mm
Heating cable FSE(w)xxxx
ON/100°C - OFF/100°C
Output: 17,31,45,60 W/m
Voltage: 115 el. 230 V
Dim: 13,1x6,0 mm/15,0x6,5 mm
Heating cable FSS
ON/150°C-OFF/200°C
Output: 15,30,40,55 W/m
Voltage: 230 V
Dim: 10,7x5,1 mm
Heating cable FSU
ON/200°C-OFF/250°C
Output: 15,30,45,60,75,90 W/m
Voltage: 230 V
Dim: 12,2x5,2 el. 14,2x5,2 mm
Heating cable FLV
ON/65C / OFF 85°C
Output: 12,17,30 W/m
Voltage: 12 or 24 VAC
Dim: 10,5x5,9 mm
Heating cable CRH
ON/OFF 135°C
Output: 90 W/m
Voltage: 600 VDC
Dim: 13x4 mm
