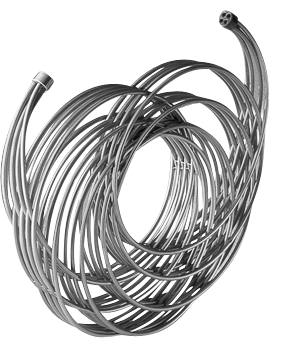

Welded tubes
We manufacture stainless steel tubes for our own production of heating elements, as well as for other plants.
The materials, dimensions, qualities etc. of the welded tubes are presented under Technical info. Wall thicknesses between 0.4 mm and 0.8 mm. In many cases we can tailor production to customer requirements, and in other cases we can process the tubes. For tubes used for pressure-bearing equipment we use material per SS-EN 10028-7. For other tubes per SS-EN 10088-2. Control per SS-EN 10233, SS-EN 10236, SEP 1915, SEP 1925. We can certify per AD2000-Merkblatt W2 on demand. Please contact us for further information.
Technical data
Material | Stainless steel, see below |
Dimensions | Ø 7.5 mm, 10 mm, 14 mm, 16 mm |
Versions | Straight tubes max. 6 m |
Material, dimensions
Type | AISI | Dia. mm |
SS 2333 | 304 | 7.5 x 0.4 |
SS 2333 | 304 | 7.5 x 0.5 |
SS 2333 | 304 | 10 x 0.5 |
SS 2333 | 304 | 12 x 0.5 |
SS 2348 | 316L | 7,5 x 0.5 |
SS 2348 | 316L | 10 x 0.5 |
SS 2348 | 316L | 12 x 0.5 |
SS 2348 | 316L | 16 x 0.75 |
R 323 | (302B) | 7.5 x 0.5 |
R 323 | (302B) | 10 x 0.6 |
Incoloy 800 | 7.5 x 0.4 | |
Incoloy 800 | 10 x 0.5 | |
Incoloy 800 | 16 x 0.75 | |
Incoloy 825 | 7.5 x 0.4 | |
Incoloy 825 | 10 x 0.5 | |
Incoloy 825 | 16 x 0.75 | |
SS 2378 | S31254 | 7.5 x 0.5 |
SS 2378 | S31254 | 10 x 0.5 |
SS 2378 | S31254 | 12 x 0.5 |
SS 2347 | 316 | 14 x 0.8 |
Example applications
- Heat exchangers
- Empty tubes for making tubular elements
- Processed tubes
