Cable sets/ Wiring, ready to install

– For numerous applications

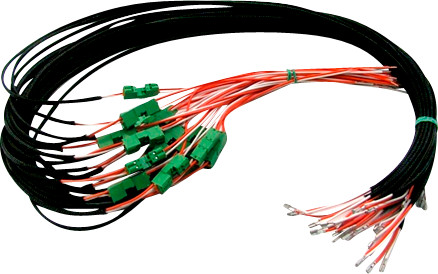

Cable sets

Cable sets / Wiring

Backer provides a wide range of cable sets / wiring according to customer specifications.



They are ready to connect to printed circuit boards, terminal blocks, various types of housings etc.

Technical data

Cables - technical data

Material

Cables: copper, tinned copper, PVC, silicon, teflon etc.
Terminals and housings: Brass, tinned brass, steel, plastic materials

Dimensions

The typical cross-sections of cables from 0.22 mm² to 6 mm²

Assembly

Crimping
Ultrasound welding
Screws

Connection

Flat connectors
Cables with different connectors (tabs, receptacles, edge connectors etc.)

Safety

The supplied cables are in compliance with standards, e.g. UL, per customer request
Plastic materials

Example applications

  • Heat pumps
  • Rear view mirrors
  • Refridgerators
  • Water bed heaters
Water bed heater
